TP-Link Omada Hardware Controller TL-OC300
Highlights:
| TP-Link Omada Hardware Controller – TL-OC300 |

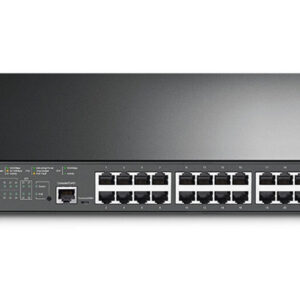

TP-Link Omada JetStream 28-Port Gigabit L2+ Managed Switch with 24 PoE+ Ports & 4 Gigabit SFP Slots – TL-SG3428MP
Highlights:
Specifications
- 24 × Gigabit RJ-45 PoE+ ports (802.3af/at), up to 30 W per port
- 4 × Gigabit SFP slots
- 1 × RJ-45 console port, 1 × micro-USB console port
- PoE power budget: 384 W total
- Power supply: 100–240 V AC, 50/60 Hz
- Cooling: dual fans
- Rack-mountable metal chassis, dimensions 440 × 330 × 44 mm (17.3 × 13.0 × 1.7 in)
- Performance & Capacity
- Switching capacity: 56 Gbps
- Packet forwarding rate: 41.66 Mpps
- MAC address table: 8K entries
- Packet buffer memory: 4.1 Mbit
- Jumbo frame support: 9 KB
- Software / Management Features
- L2+ managed features: VLAN (802.1Q), Static Routing, IGMP Snooping, QoS (L2–L4)
- Security: IP-MAC-Port Binding, ACL, 802.1X authentication, storm control, DHCP snooping
- Management: Web GUI, CLI (console/SSH/telnet), SNMP, RMON
- Dual firmware image support for reliability
- Omada SDN integration with cloud management, zero-touch provisioning, centralized monitoring and configuration
- Power & Environmental
- Maximum power consumption: ~463.8 W with full PoE load
- Operating temperature: 0–45 °C
- Storage temperature: –40–70 °C
- Operating humidity: 10–90% RH (non-condensing)
- Storage humidity: 5–90% RH (non-condensing)
TP-Link Omada JetStream 48-Port Gigabit L2+ Managed Switch with 48 PoE+ Ports & 4 × 10GE SFP+ Slots – TL-SG3452XP
Highlights:
Specifications
- 48 × 10/100/1000 Mbps RJ-45 PoE+ ports (802.3af/at), up to 30 W per port
- 4 × 10 Gbps SFP+ uplink slots
- 1 × RJ-45 console port, 1 × micro-USB console port
- PoE power budget: 500 W total
- Power supply: 100–240 V AC, 50/60 Hz
- Cooling: 3 fans
- Rack-mountable metal chassis, dimensions: 440 × 330 × 44 mm
- Performance & Capacity
- Switching capacity: 176 Gbps
- Packet forwarding rate: 130.9 Mpps
- MAC address table: 16K entries
- Packet buffer memory: 12 Mbit
- Jumbo frame support: 9 KB
- Software & Management Features
- L2+ features: VLANs (802.1Q), Link Aggregation (static & LACP), Spanning Tree Protocols (STP/RSTP/MSTP)
- Static routing support
- QoS: multiple priority queues, CoS/DSCP, bandwidth control
- Security: IP-MAC-Port Binding, ACLs, Port Security, 802.1X Authentication, Storm Control, DHCP Snooping
- Management: Web GUI, CLI (console/SSH/Telnet), SNMP, RMON, dual firmware image
- Omada SDN integration: centralized cloud management, zero-touch provisioning, monitoring
- Power & Environmental
- Max power consumption (no PoE load): ~49 W
- Max power consumption (with full 500 W PoE load): ~635.7 W
- Heat dissipation: ~2169 BTU/hr at full load
- Operating temperature: 0–45 °C
- Storage temperature: –40–70 °C
- Operating humidity: 10–90% RH (non-condensing)
- Storage humidity: 5–90% RH (non-condensing)
TP-Link Tapo Outdoor Pan/Tilt Security WiFi Camera – TL-Tapo C500
Highlights:
Specifications
- Video Quality: Full HD 1080p resolution for clear and detailed footage
- Pan & Tilt: 360° horizontal and 130° vertical field of view for full coverage
- Night Vision: Up to 30 meters (98 ft) with infrared night vision
- AI Detection: Smart AI identifies people, pets, and vehicles
- Two-Way Audio: Built-in microphone and speaker for real-time communication
- Storage Options: Supports up to 512GB microSD card (local storage) and Tapo Care cloud storage
- Connectivity: Wi-Fi 2.4GHz
- Weatherproof: IP65 rating for reliable outdoor use
- Motion Tracking: Automatically tracks and follows moving objects
- Smart Alerts: Instant notifications on motion detection via Tapo app
- Compatibility: Works with Google Assistant & Amazon Alexa
TP-Link Tapo Outdoor Security Wi-Fi Camera – TL-Tapo C310
Highlights:
Specifications
Resolution: 3MP (2304 × 1296, ~2K)
Lens: Fixed 3.89 mm, F/2.2
Image Sensor: 1/2.7-inch
Night Vision: Up to 30 m (98 ft) IR
Networking: Wired Ethernet or Wireless 2.4 GHz Wi-Fi
Weatherproof: IP66 outdoor protection
Storage: Supports microSD card up to 512 GB
Detection: Motion and person detection with customizable activity zones
Audio: Two-way audio with built-in mic and speaker
Alarm: Sound and light alarm on detection
Operating Conditions: −20 °C to 45 °C, 10–90% humidity (non-condensing)
Power & Interface: 1× Ethernet port, microSD slot, reset button, waterproof cable fittings
TP-Link TL-CPE220 – 2.4GHz 300Mbps 12dBi Outdoor CPE
Highlights:
Specifications
- Wireless Standard: IEEE 802.11b/g/n
- Frequency Band: 2.4GHz (2.4–2.483GHz)
- Wireless Speed: Up to 300Mbps
- Antenna: Built-in 12dBi 2×2 dual-polarized directional MIMO antenna
- Transmission Power: Adjustable from 0 to 30dBm (1000mW)
- Operating Modes: AP, Client, AP Router, AP Client Router (WISP)
- Processor: Qualcomm Atheros 560MHz CPU
- Memory: 64MB DDR2 RAM, 8MB Flash
- Ethernet Ports: 1× 10/100Mbps shielded Ethernet port (Passive PoE input)
- Power Supply: Passive PoE (16–27VDC)
- Power Consumption: 10.8W maximum
- Operating Temperature: -30°C to 70°C
- Enclosure: Weatherproof IPX5-rated ASA plastic
- Lightning Protection: 6kV
- ESD Protection: 15kV
- Dimensions: 276 × 79 × 60 mm
- Weight: 0.52 kg

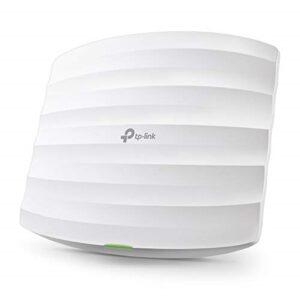

TP-Link TL-EAP225: AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
Highlights:
Specifications
- Wireless Standards:
- IEEE 802.11a/b/g/n/ac
- Wireless Speeds:
- 2.4 GHz: Up to 450 Mbps
- 5 GHz: Up to 867 Mbps
- Total: 1317 Mbps
- MU-MIMO Technology:
- Supports multiple devices simultaneously for improved efficiency.
- Power Supply:
- Supports 802.3af and Passive PoE (PoE adapter included) for flexible installations.
- Management:
- Centralized cloud management via Omada SDN platform.
- Omada app for convenient management.
- Seamless Roaming:
- Ensures uninterrupted video streams and voice calls as users move between locations.
- Security Features:
- Secure guest network with multiple authentication options (SMS/Facebook Wi-Fi/Voucher, etc.).
- Advanced wireless security technologies.
- Mounting Options:
- Ceiling or wall mounting with included kits.
- Operating Temperature:
- 0°C ~ 40°C (32°F ~ 104°F)
Tp-Link TL-MR100 300 Mbps Wireless N 4G LTE Router
Highlights:
Tp-Link TL-MR100 300 Mbps Wireless N 4G LTE Router
- Cutting-edge 4G network – Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- Plug a SIM card and play – No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests
- Two detachable advanced LTE antennas – Enjoy stable and efficient connections to every device thanks to the two external antennas
Tp-Link TL-MR6400 300 Mbps Wireless N 4G LTE Router
Highlights:
Tp-Link TL-MR6400 300 Mbps Wireless N 4G LTE Router
- Cutting-edge 4G network – share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps
- Plug a SIM card and play – no configurations needed, compatibility of SIM cards.
- Two detachable advanced LTE antennas – enjoy stable and efficient connections to every device thanks to the two external antennas
TP-Link TL-SF1006P – 6-Port 10/100 Mbps Desktop Switch (4-Port PoE+)
Highlights:
Specifications
- 6 × RJ-45 10/100 Mbps ports
- Ports 1 to 4 support PoE+ (802.3af/at) — data + power over Ethernet
- Total PoE power budget: 67 W across the 4 PoE+ ports
- Per-port PoE power: up to 30 W on each PoE+ port
- Extend Mode: supports up to 250 meters transmission distance in Extend Mode (but at reduced speed, usually 10 Mbps)
- Priority Mode: ports 1 and 2 can be given higher priority for sensitive traffic (e.g. video or voice)
- Switching capacity: ~ 1.2 Gbps
- Forwarding rate: around 0.8928 Mpps
- MAC address table: 2K entries
- Jumbo frame support: up to 2 KB (≈ 2000 bytes)
- Hardware: fanless, metal casing, durable design, desktop or wall-mount form factor
- External power supply: Adapter, output ~ 53.5 V DC / 1.31 A
- Physical dimensions: ~ 158 × 101 × 25 mm (~ 6.2 × 4.0 × 1.0 in)
- Power consumption:
• ~ 1.9 W without PoE devices connected
• ~ 74 W with full PoE load (all 67 W used) - Operating temperature: 0-40 °C; Storage: -40-70 °C; Operating humidity: 10-90% RH non-condensing
TP-Link TL-SF1009P – 9-Port 10/100 Mbps Desktop Switch with 8-Port PoE⁺
Highlights:
Specifications
9 × RJ-45 10/100 Mbps Ethernet ports, of which ports 1-8 support PoE⁺ (IEEE 802.3af/at)
- Supports up to 30 W per PoE port
- Total PoE power budget: 65 W for all 8 PoE ports combined
- Extend Mode: allows up to 250 meters of power + data transmission (though port speed will drop to 10 Mbps in this mode)
- Priority Mode: Ports 1-2 can be given high priority to ensure performance for sensitive traffic (video/voice)
- Isolation Mode: One-click feature to isolate traffic on PoE ports 1-8 for security and to reduce broadcast noise
- Unmanaged “plug & play” switch — no software or configuration needed for basic operation
- Hardware: fanless design, metal casing, desktop/wall-mountable form factor
- Switch capacity / forwarding rate: ~ 1.8 Gbps switching capacity; ~ 1.3392 Mpps forwarding rate
- MAC address table: 2,000 entries (2K)
- Jumbo frame support: up to ~ 2 KB frame size
- Dimensions: approx. 171 × 98 × 27 mm (~ 6.7 × 3.9 × 1.1 in)
- Power & thermal:
• ≈ 3.6 W when no PD (Powered Device) is connected
• ≈ 77.1 W under full PoE load (i.e. 65 W used by devices)
