TP-Link TL-SG1008D – 8-Port 10/100/1000 Mbps Gigabit Desktop Switch
Highlights:
Specifications
- Ports: 8 × RJ-45 Gigabit Ethernet ports (10/100/1000 Mbps) with Auto-Negotiation & Auto MDI/MDIX
- Standards / Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x flow control
- Switching Capacity: 16 Gbps
- MAC Address Table Size: 4,000 (4K) entries
- Jumbo Frames Support: Up to 15 KB
- Power Consumption (Max): approx. 4.6 W
- Dimensions (W × D × H): ~ 180 × 90 × 25.5 mm (~ 7.1 × 3.5 × 1.0 in)
- Case & Mounting: Plastic desktop case; wall-mountable design; fanless (silent) operation
- LEDs Indicators: Power LED; per-port Link/Activity LEDs
- External Power Supply: Adapter-type power supply (~9V DC / 0.6A)
- Environment: Operating temperature ~ 0 °C to 40 °C; storage temperature -40 °C to 70 °C; operating humidity 10-90% non-condensing; storage humidity ~5-90% non-condensing.
TP-Link TL-SG1210P – 10-Port Gigabit Desktop Switch (8-Port PoE+)
Highlights:
Specifications
- 8 × Gigabit RJ-45 PoE+ ports (IEEE 802.3af/at)
- 1 × Gigabit RJ-45 non-PoE port
- 1 × Gigabit SFP uplink port for fiber or long-distance link
- PoE budget: 63 W total
- Each PoE port can supply up to 30 W
- Supports Extend Mode: data + power transmission up to 250 meters on some PoE ports under special conditions
- QoS features: 802.1p & DSCP for prioritizing latency-sensitive traffic (voice, video)
- IGMP Snooping supported for multicast optimizations
- Store-and-forward switching method
- Switching capacity: 20 Gbps
- Forwarding rate: ~ 14.88 million packets/sec (Mpps)
- MAC address table size: ~ 4,000 entries
- Jumbo frame support: up to 16 KB
- Fanless design (quiet operation)
- Dimensions: ~ 209 × 126 × 26 mm
- Power supply: External adapter, ~ 53.5 VDC / 1.31 A
- Max power consumption: ~ 7.11 W (no PoE load) up to ~ 78.13 W (with full 63 W PoE load)
- Operating temp: 0-40 °C; storage -40-70 °C; humidity: 10-90% non-condensing
New
TP‑Link TL‑SG1428PE 28‑Port Gigabit Easy Smart Switch — 24× PoE+ 802.3at/af Ports + 4× Gigabit Uplink Ports, 10/100/1000Mbps, Easy Smart Management & High PoE Power Budget for IP Cameras and Wireless APs
Highlights:
TP‑Link TL‑SG1428PE 28‑Port Gigabit Easy Smart Switch — 24× PoE+ 802.3at/af Ports + 4× Gigabit Uplink Ports, 10/100/1000Mbps, Easy Smart Management & High PoE Power Budget for IP Cameras and Wireless APs
New

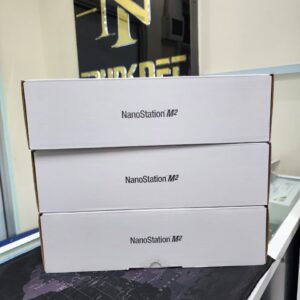

Ubiquiti NanoStation M2 (NS-M2) 2.4 GHz Outdoor PtP/PtMP Wireless CPE — High-Gain AirMax Bridge with 13 dBi Antenna • Weather-Resistant Outdoor Design • Versatile Router/Access Client • Long-Range 2.4 GHz Connectivity
Highlights:
Ubiquiti NanoStation M2 (NS-M2) 2.4 GHz Outdoor PtP/PtMP Wireless CPE — High-Gain AirMax Bridge with 13 dBi Antenna • Weather-Resistant Outdoor Design • Versatile Router/Access Client • Long-Range 2.4 GHz Connectivity
New
Ubiquiti NanoStation M2 Loco (NS-M2 Loco) 2.4 GHz Outdoor CPE — Compact AirMax PtP/PtMP Wireless Bridge with 8 dBi High-Gain Antennas, Weather-Resistant Design, and Flexible Power Options
Highlights:
Ubiquiti NanoStation M2 Loco (NS-M2 Loco) 2.4 GHz Outdoor CPE — Compact AirMax PtP/PtMP Wireless Bridge with 8 dBi High-Gain Antennas, Weather-Resistant Design, and Flexible Power Options
V-Sol 16 Port EPON OLT V1600D16
Highlights:
The V-Sol 16 Port EPON OLT V1600D16 is suitable for “Triple-Play”, CPN, IP Camera,
V.sol Four Port GPON OLT
Highlights:
